PIR HC-SR501 + DHT22 with box
Sensors PIR HC-SR501 + DHT22 with installation box. Diameter of the installation hole is 67 mm.

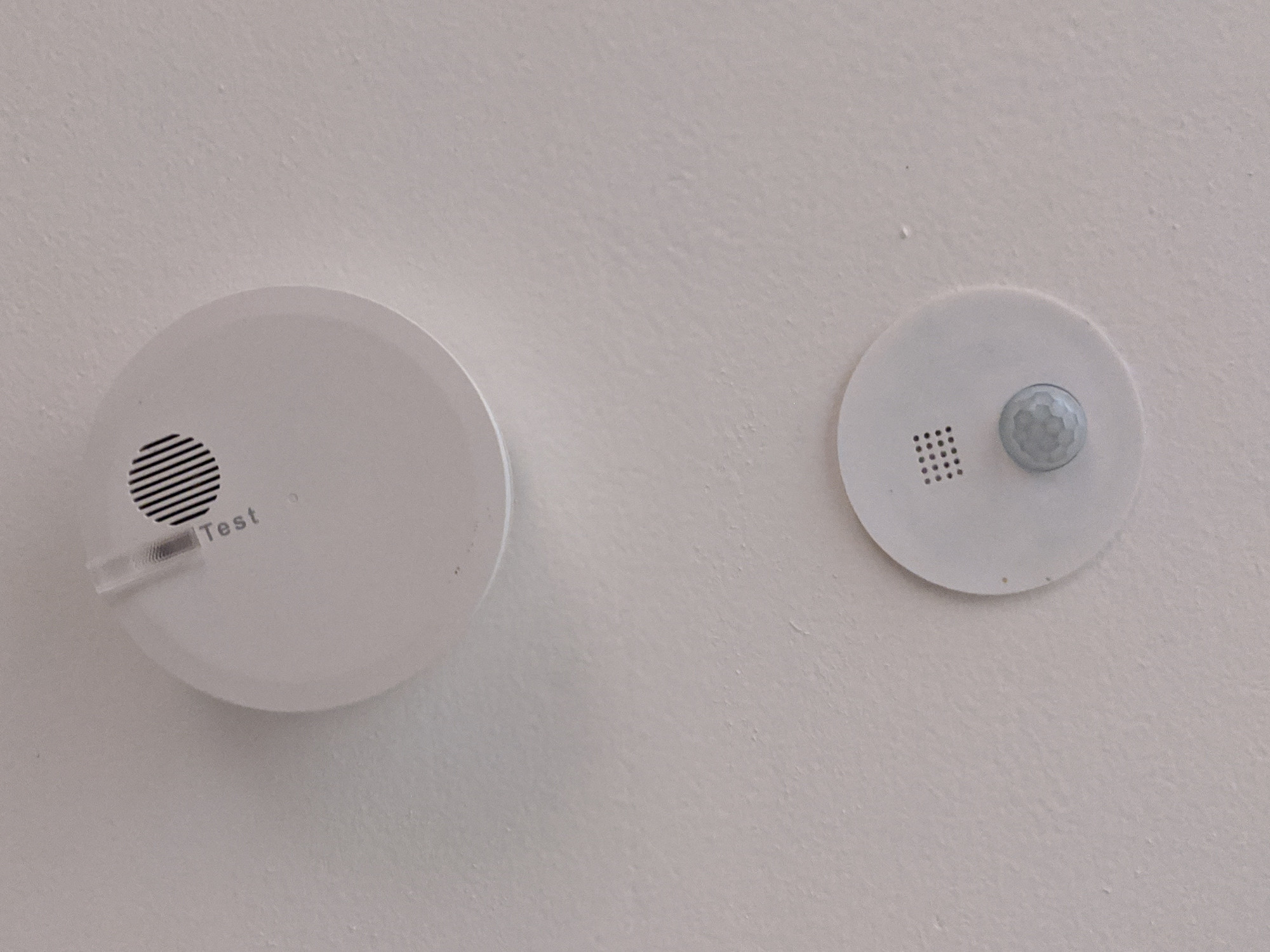

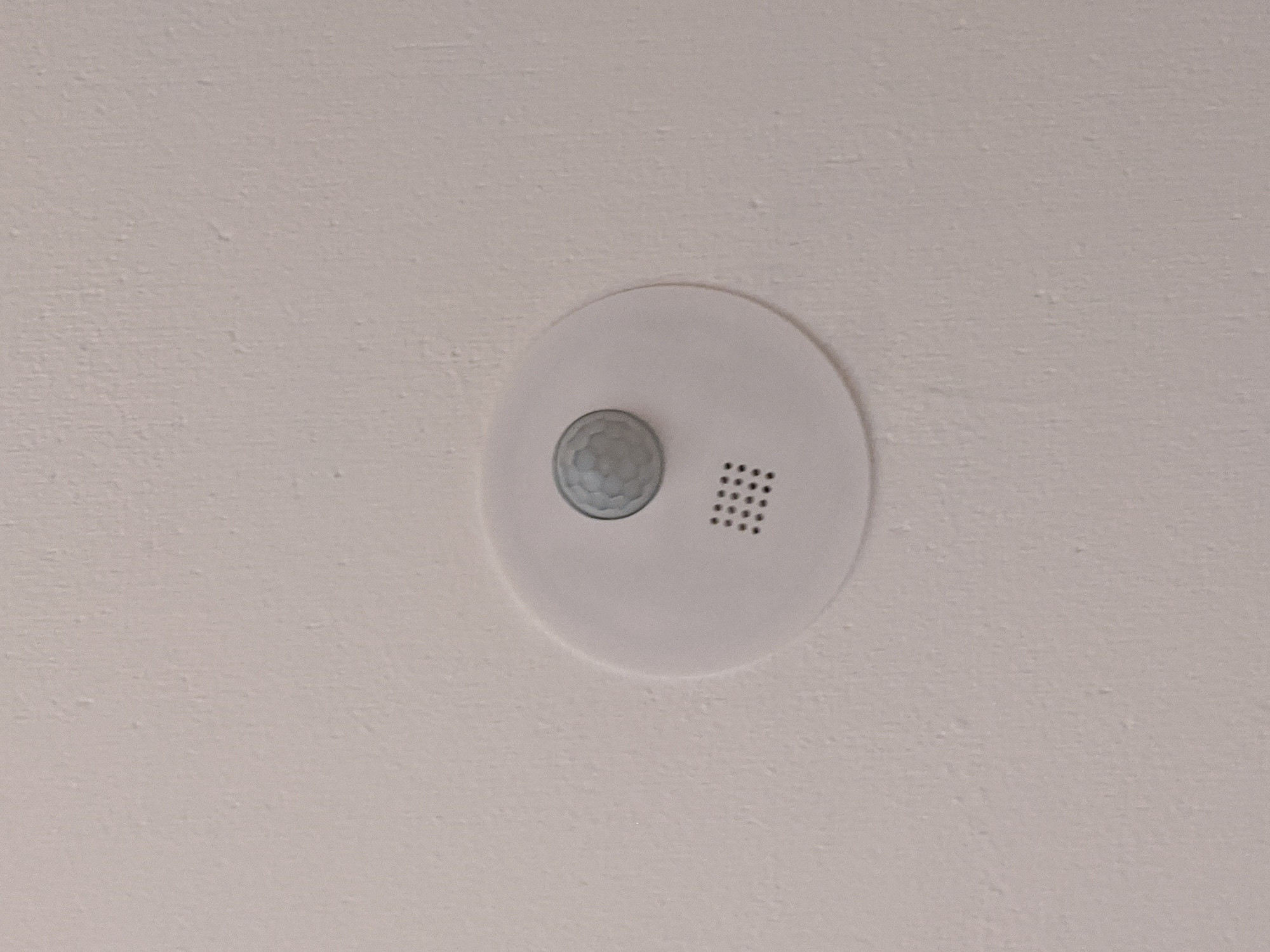

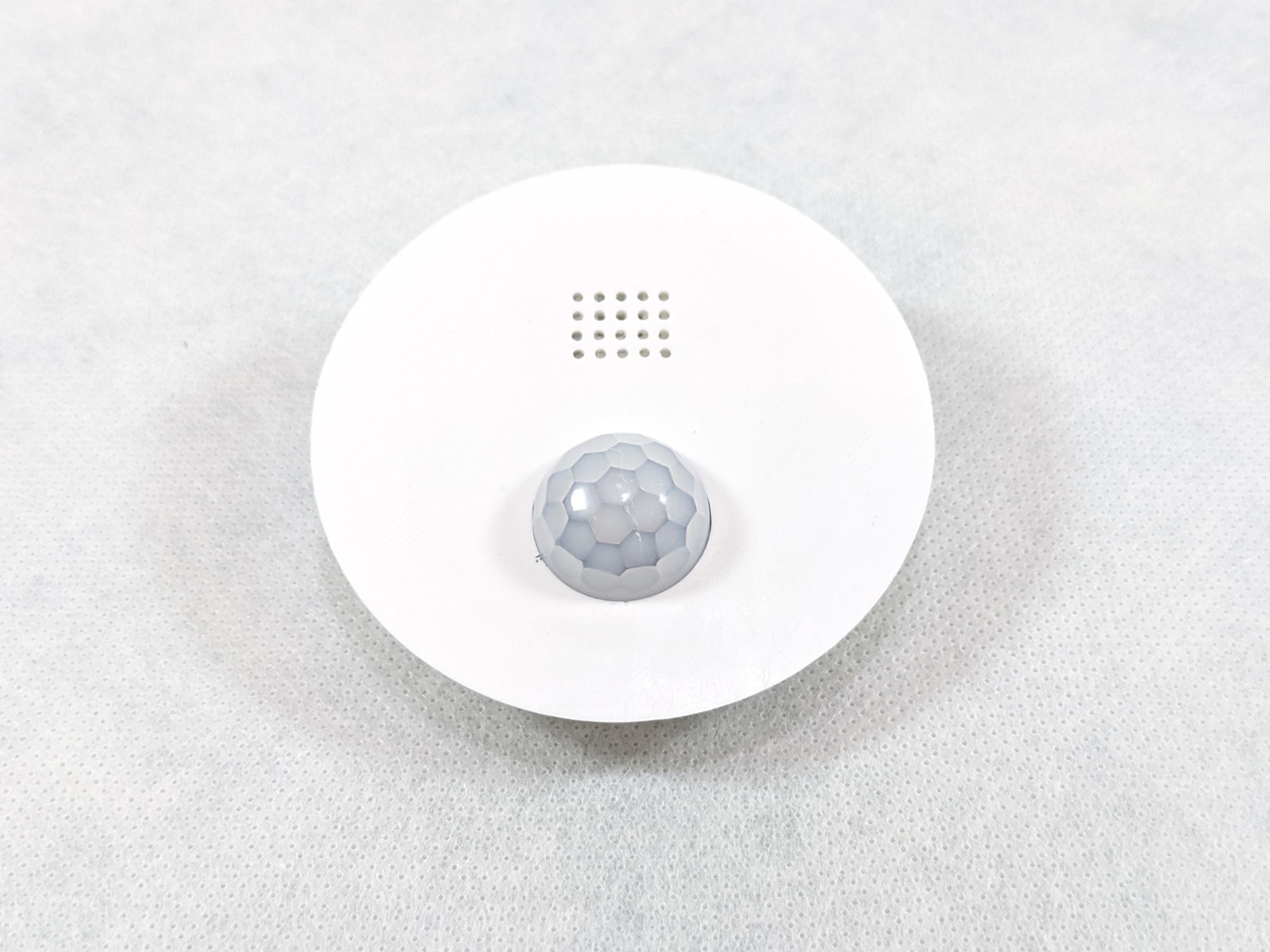

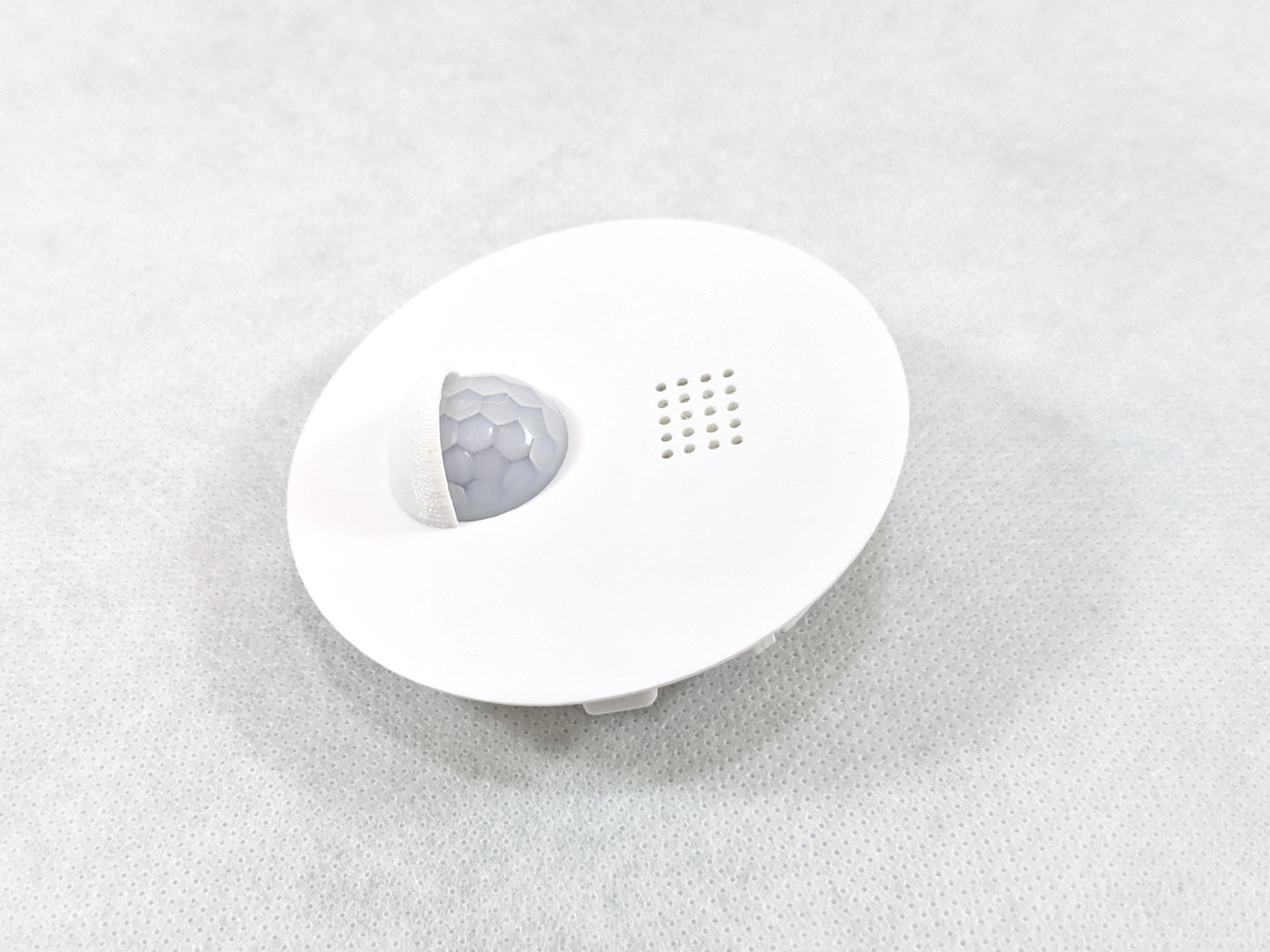

Housing for PIR HC-SR501 + DHT22 sensor. Measuring of the motion, temperature and humidity. Installation in hollow walls. Diameter of the installation hole is 67 mm. Housing includes lens cover, which can be glued to the housing, enabling to reduce the angle from the sensor's PIR from 360° to about 180° degrees.
Description
HC-SR501
- activation time: 5s - 200s
- detection range: approximately 7m
- detection angle: less than 120°
- idle current: less than 50uA
- operating temperature: -15°C - +70°C
- power supply: 5-20V
Senzor DHT22
- humidity range: 0-100% RH
- temperature range: -40 to +80?
- humidity precision: 2.0% RH
- temperature precision: 0.5 °C
- voltage: 3.3-5.5VDC
Installation box
Material: PETG | Color: White
Material produced by: Plasty Mladeč®
Created on: iPrusa MK2
Description of material:
The PETG material is essentially the same as the well-known PET material from which PET bottles are made. The letter G, abbreviated PETG, refers to the glycol that is added during the manufacturing process. Glycol modifies the properties of PET to make it less fragile and easier to print. It is a strong and tough material that is characterized by good thermal stability. PETG has mechanical and thermal properties better than ABS and carries PLA printing properties.
PETG | |
| Bending strength (MPa) | 64 |
| Tensile strength (MPa) | 53 |
| Deformation temperature (°C) | 70 |
| Melting temperature (°C) | 140 |
Video - assembly & installation

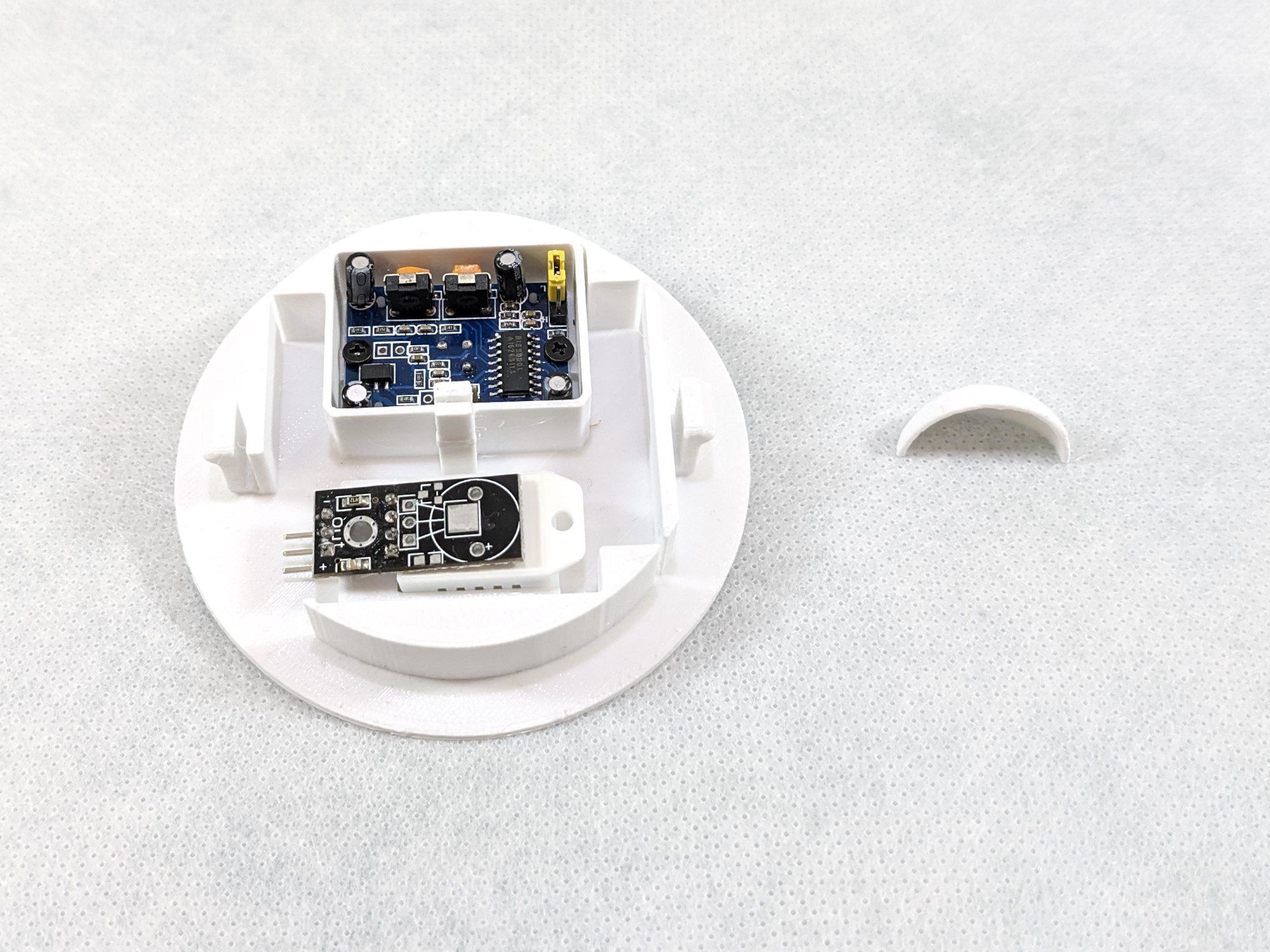

Package includes:
Sensor HC-SR501
Sensor DHT22
Installation box
Cover for possible adjustment of the PIR's angle
Screws
